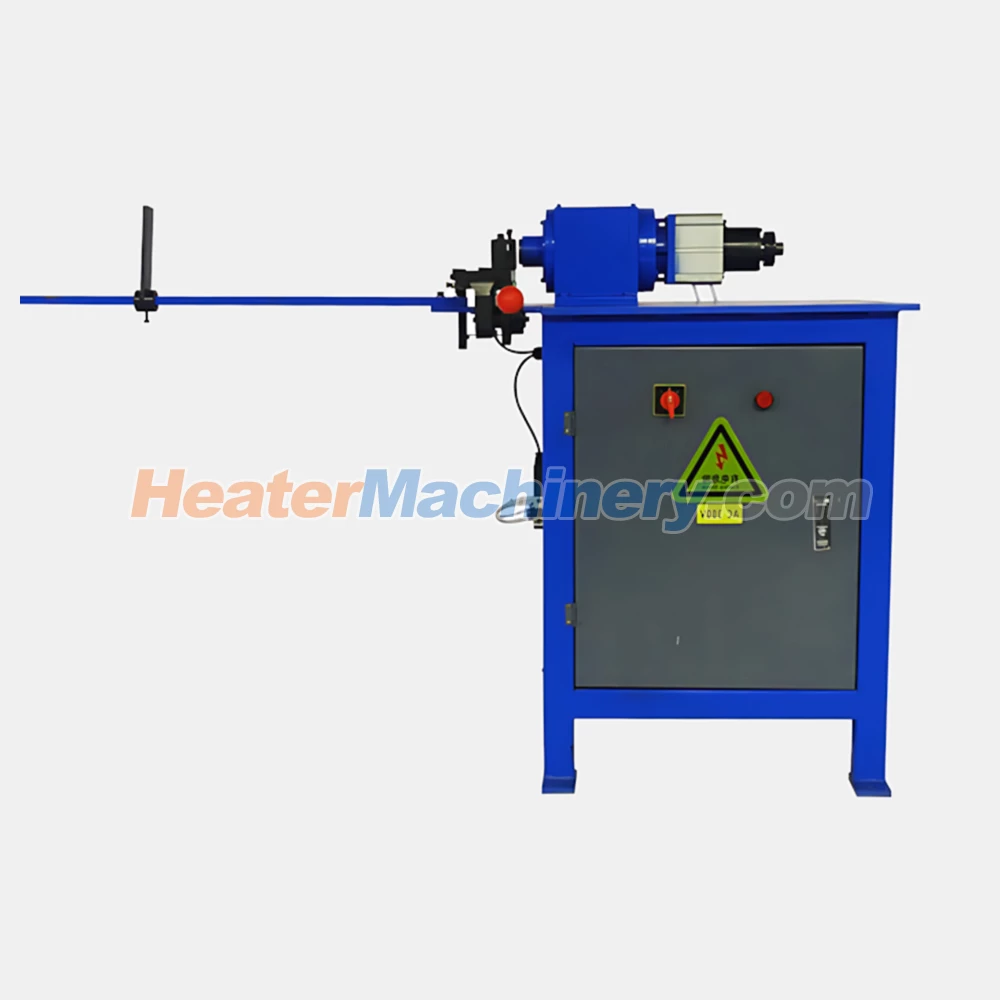

Manual Tube Cutting Machine

The HM-CM101 Manual Tube Cutting Machine is designed for manual operation and is ideal for cutting tubes in various sizes and small quantities, such as those used in cartridge heaters. The machine features elastic chucks for easy and quick specification changes. It is a high-efficiency solution for cutting tubes with a daily output range of 6000 to 20000 pieces.

• Functions:
  • Cuts tubes with minimal burr formation, reducing the need for additional cleaning.
  • Ideal for cutting copper tubes, iron tubes, stainless steel tubes, aluminum tubes, and other materials.
• Machine Features:

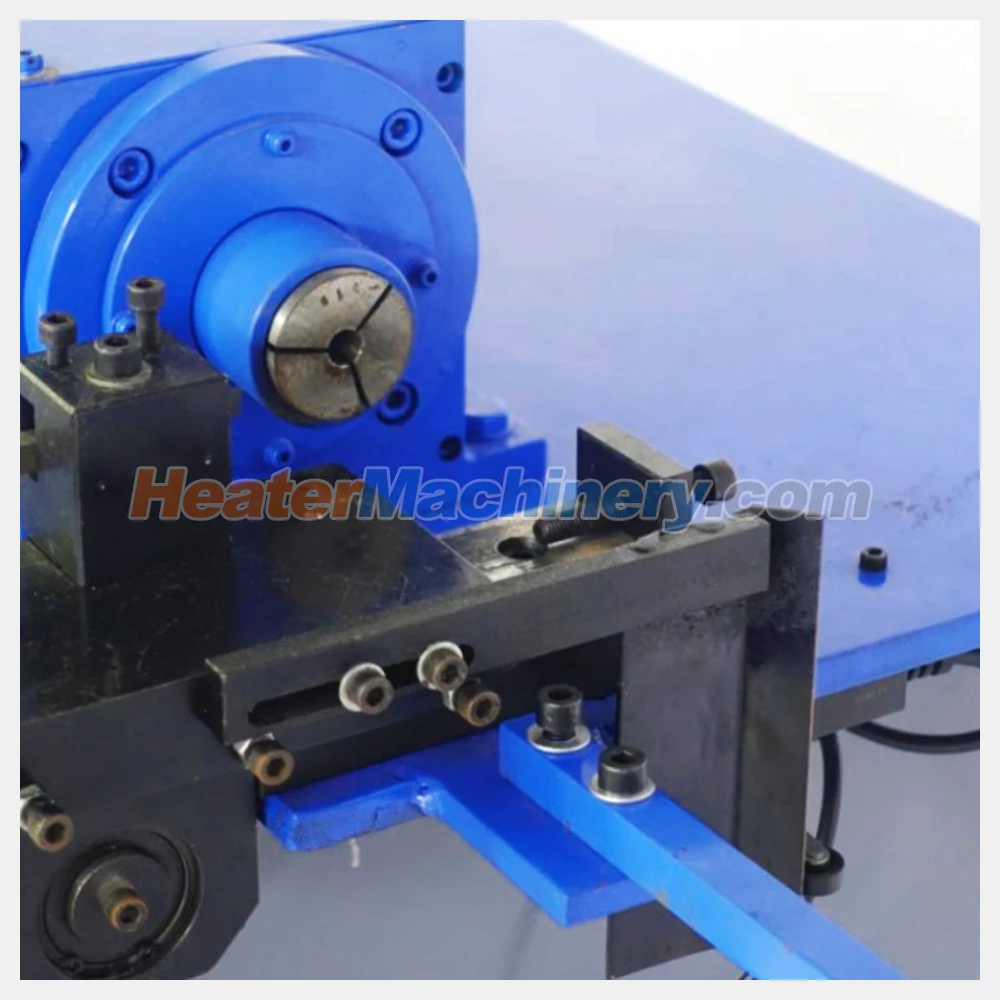

  • Utilizes rotation fixtures and elastic chucks to rotate tubes during cutting.
  • Slicer blade controls the cutting process based on blade angle, ensuring minimal burrs.

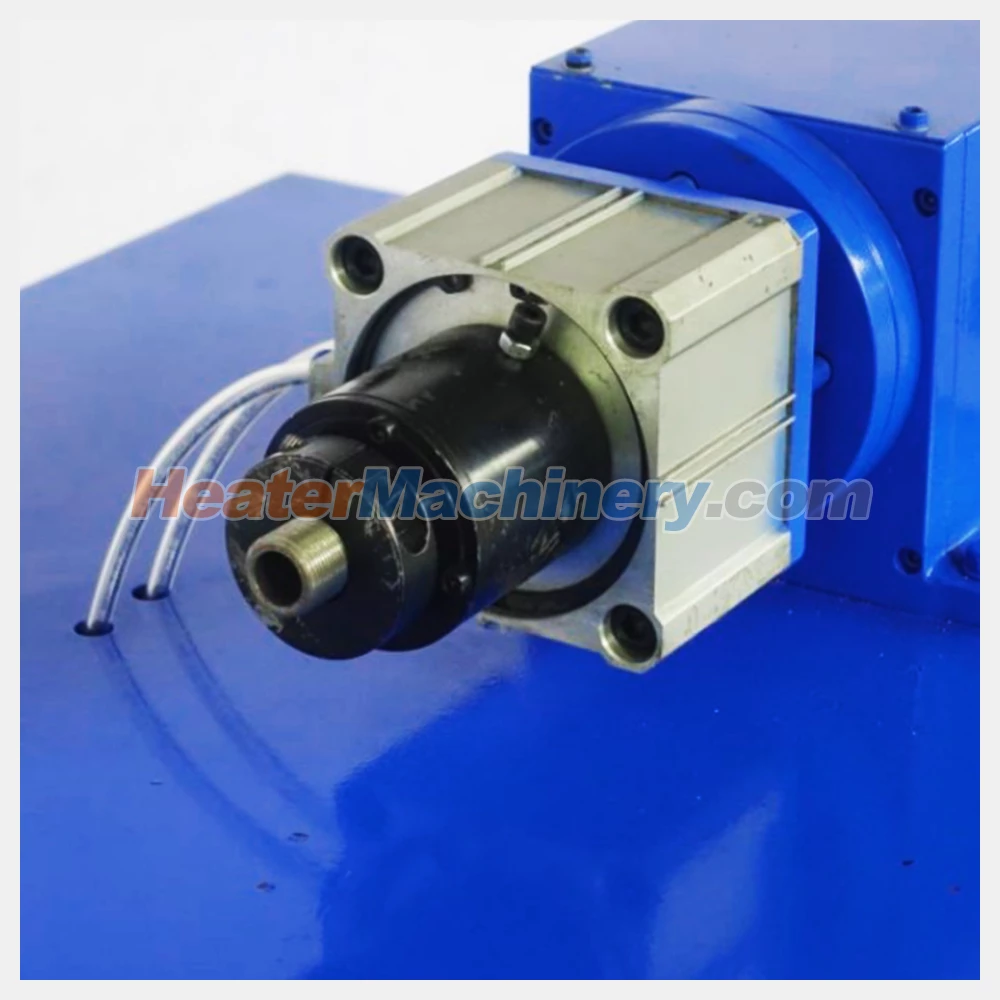

  • Pneumatic mechanism controls elastic chucks and works in sync with the cutters for smooth operation.
  • High production efficiency, capable of cutting 8000 to 10000 tubes per shift.
  • Position-limit mechanism for precise cutting length adjustments.
  • Users must create charging barrels and brackets according to the machine’s center height.

Technical Parameters:

• Cutting Capacity: Suitable for tubes with diameters ranging from Φ5mm to Φ15mm.
• Power: 0.75KW motor.
• Cutting Speed: Approximately 10,000 pieces per 8-hour shift, depending on tube specifications.
• Electrical Power: 3-phase 380V, 50Hz or customized according to customer requirements.
