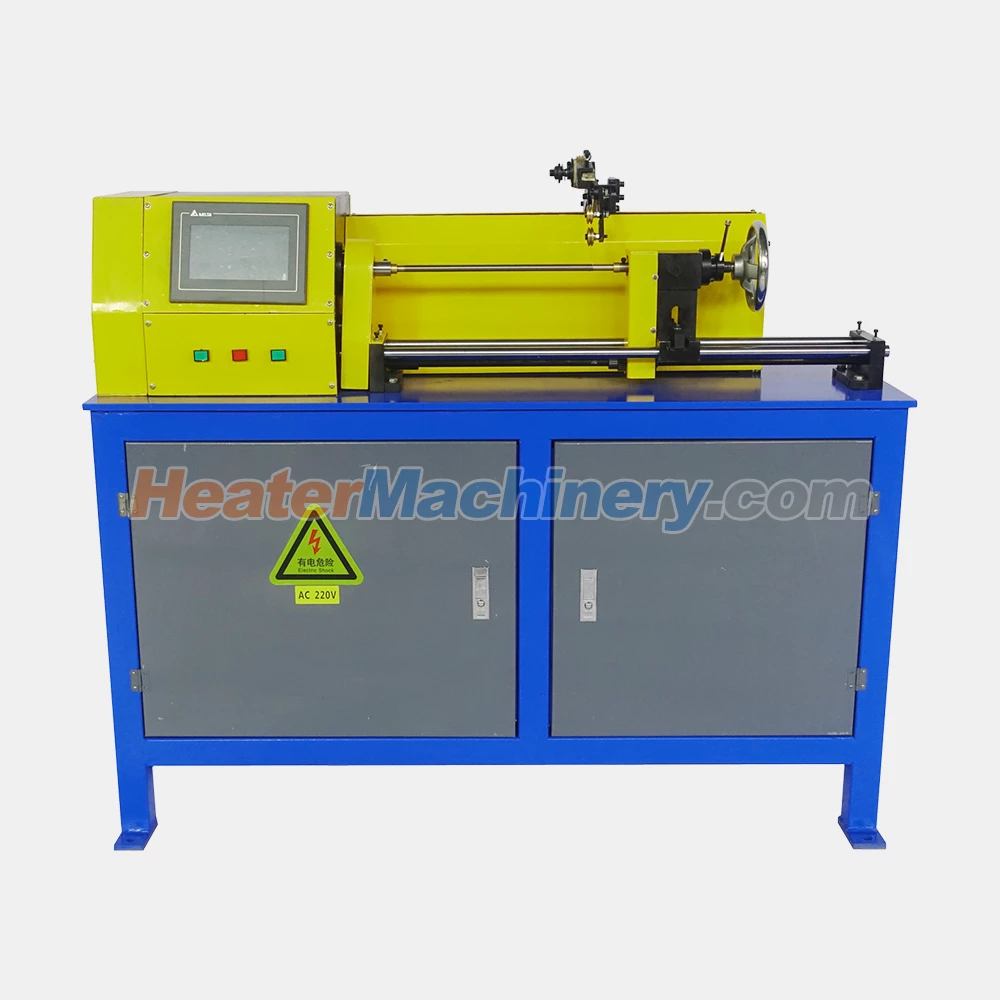

Magnesium Rod Or Mica Sheets Coiling Machine

The HM-CW323 Magnesium Rod Or Mica Sheets Coiling Machine is specially designed for winding single-end lead resistance wires, high-density electric heating elements, mica sheets, carbon fibers, magnesium rods, ceramic rods, and other electric heating components. It is a versatile, multi-purpose machine controlled by a PLC and touch screen, allowing for easy operation and customization. Additionally, the machine is capable of producing electric heating elements with different pitch arrangements.

• Functions:

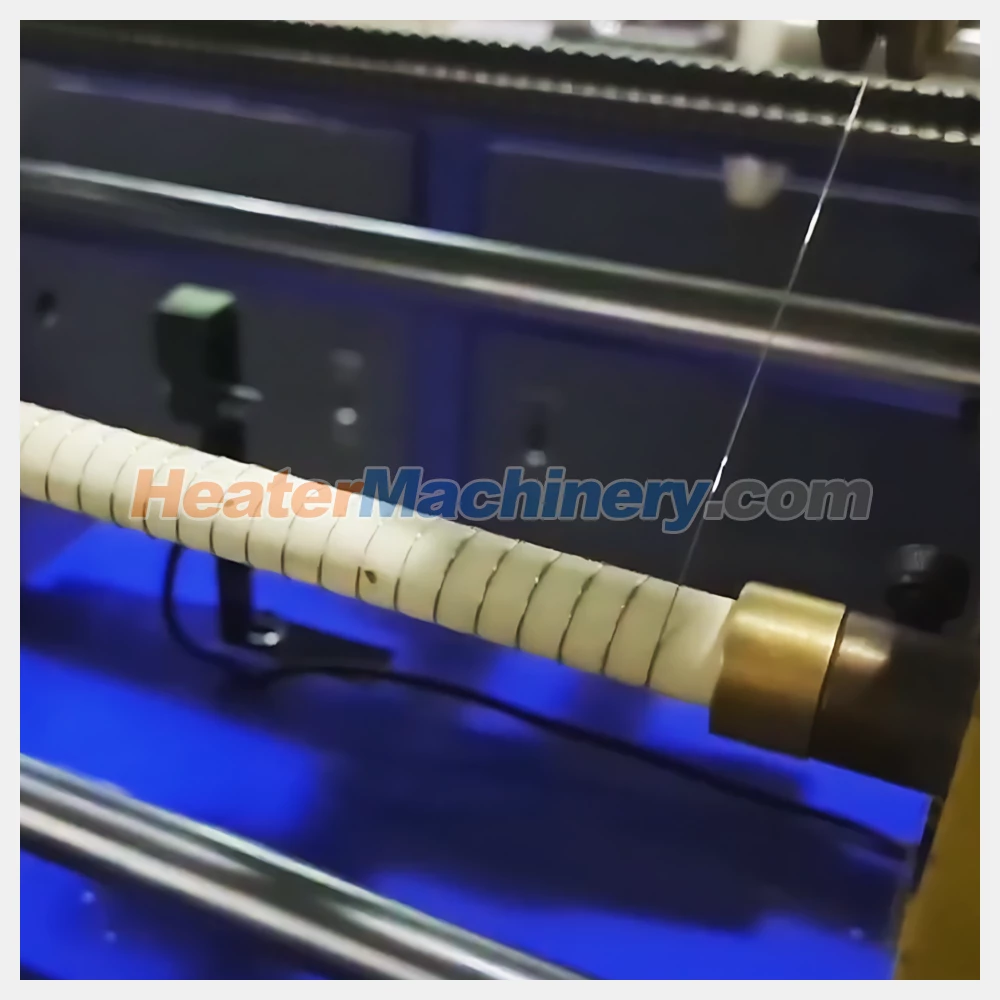

  • Coil resistance wire onto MGO rods or mica sheets.
  • Can wind electric heating elements with varying pitches.
• Features:
  • Capable of winding different pitches and coil quantities with ease.
  • Adjustable coil direction.
  • User-friendly touch screen interface for easy operation.

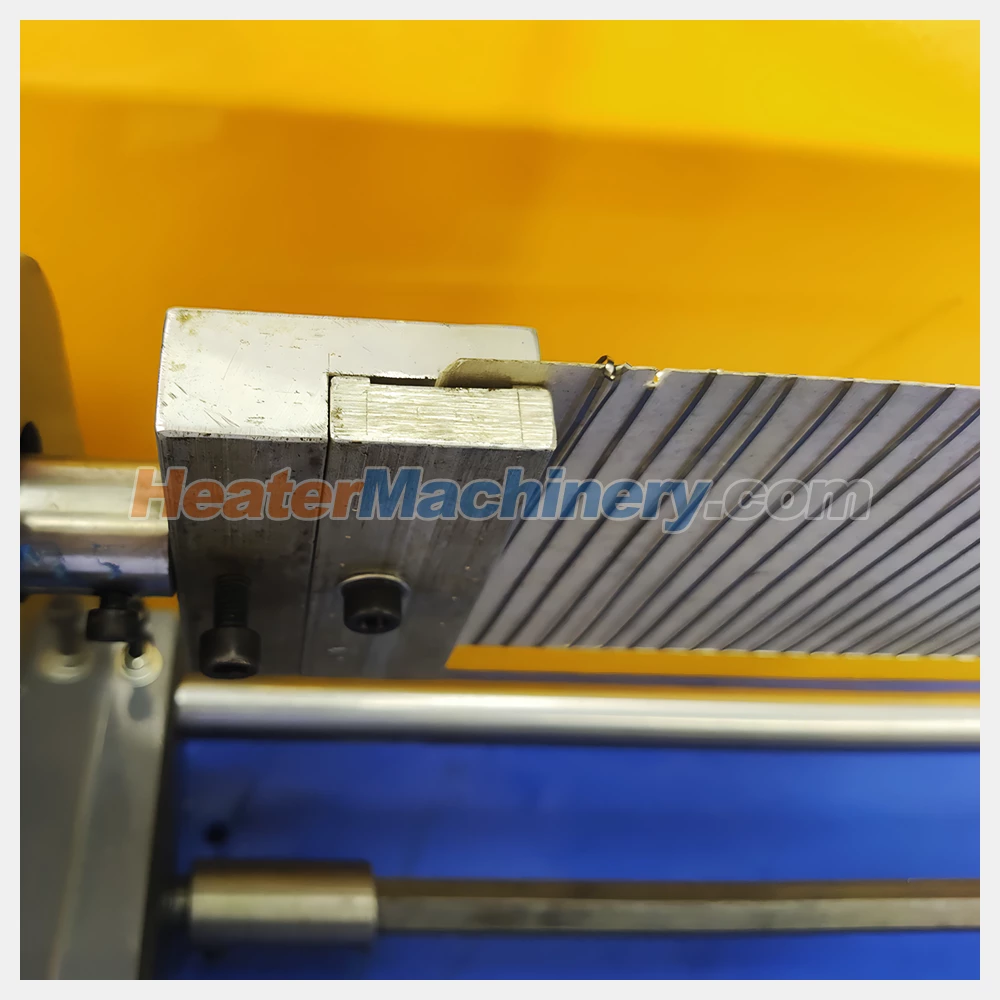

  • Interchangeable chuck for winding resistance wire onto MGO rods or mica sheets.

Technical Parameters:

• Suitable for: High-density cartridge heaters, mica sheets, and other heating elements.
• Maximum Coil Length: Typically 1000mm.
• Electrical Power Supply:
  • 3-phase 380V,
  • 3-phase 220V,
  • Single-phase 220V,
  • 50Hz.
