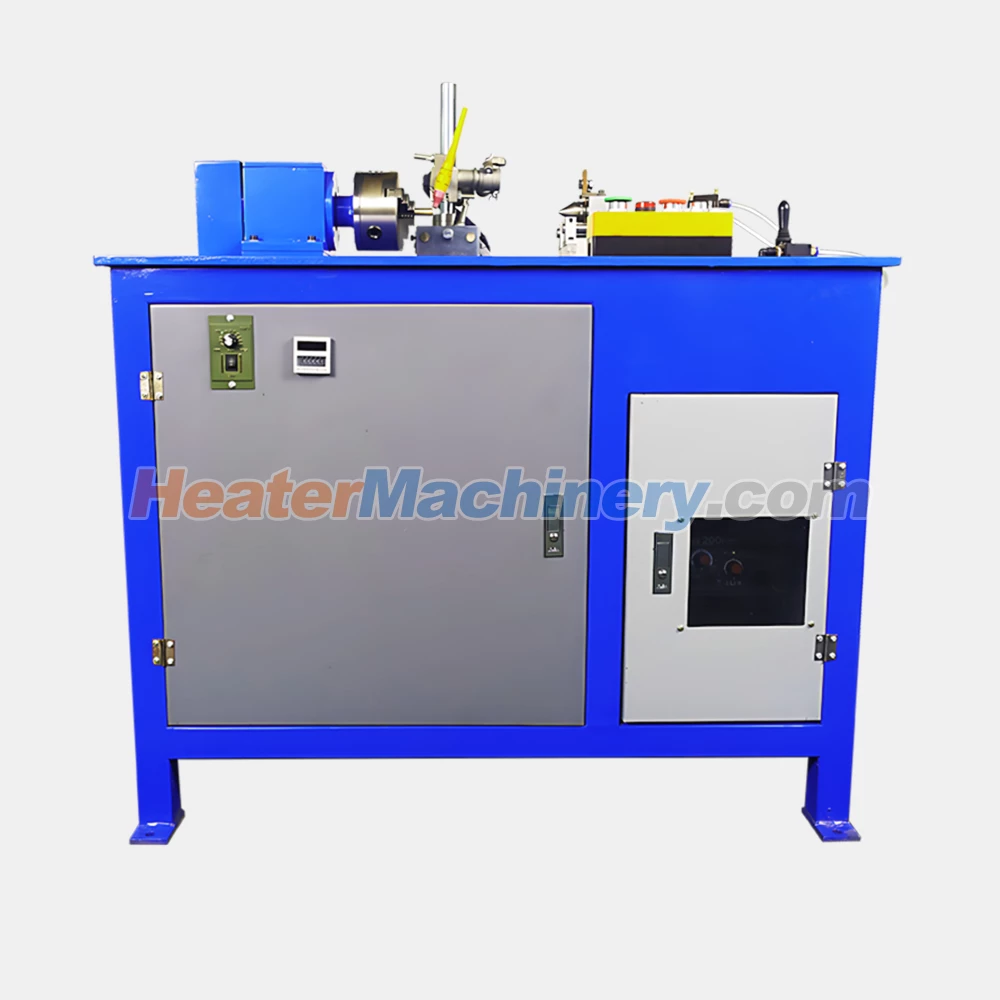

Horizontal Automatic Rotary Welding Machine

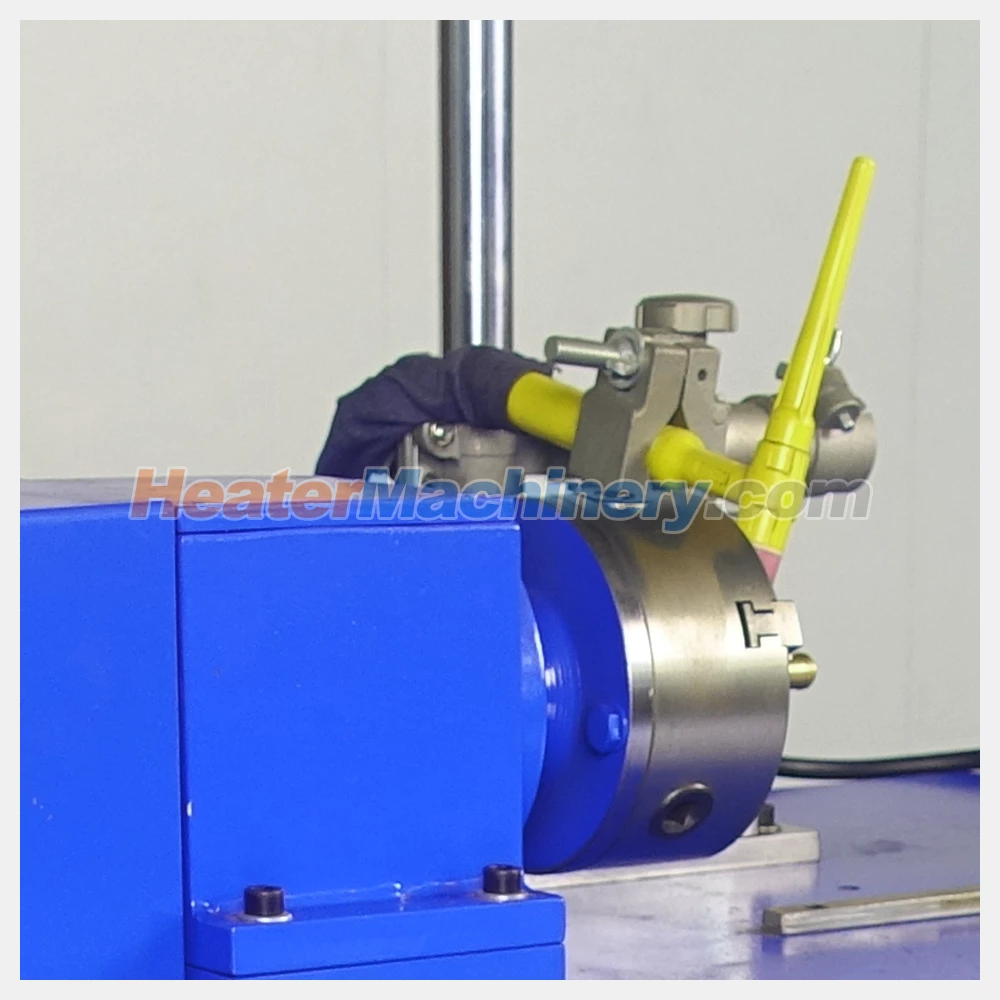

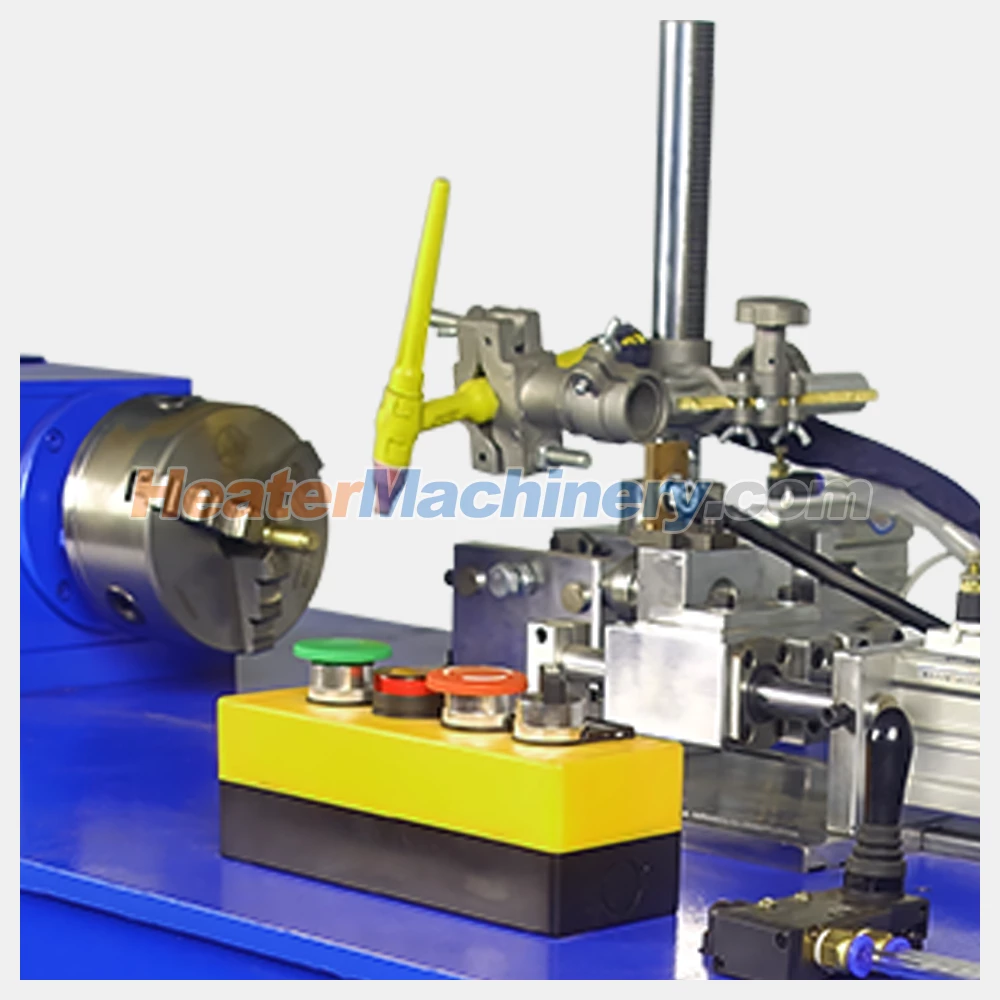

The HM-WM149B Horizontal Automatic Rotary Welding Machine is designed specifically for welding the bottom (end) of cartridge heaters. This rotary welding machine features an electromagnetic vibrating disk device at the capacitor energy storage spot welder, along with a swing cylinder and a manipulator composed of a cylinder. The welding piece is attached to the welding station by vacuum, ensuring precise alignment with the groove. The machine provides accurate and fast welding, with manual loading and unloading of the workpiece.

• Functions:
  • Welds the bottom (end) of tubes for cartridge heaters and hot runner heaters.
• Machine Features:

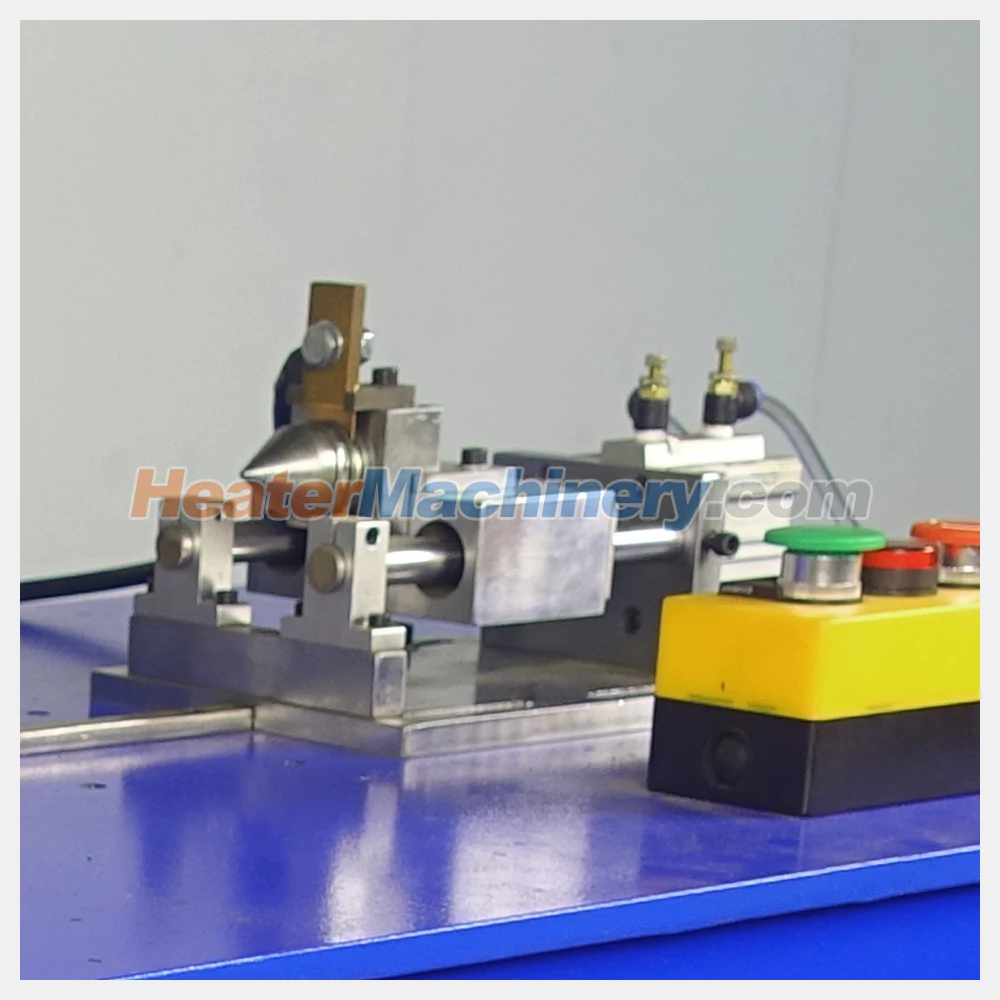

  • Tube clamping mechanism for easy operation.
  • Manual material loading with automatic welding.
  • Compact design and efficient operation.

Applications:

• Suitable for welding the bottom of tubes used in cartridge heaters or hot runner heaters.
