HM-CM101A

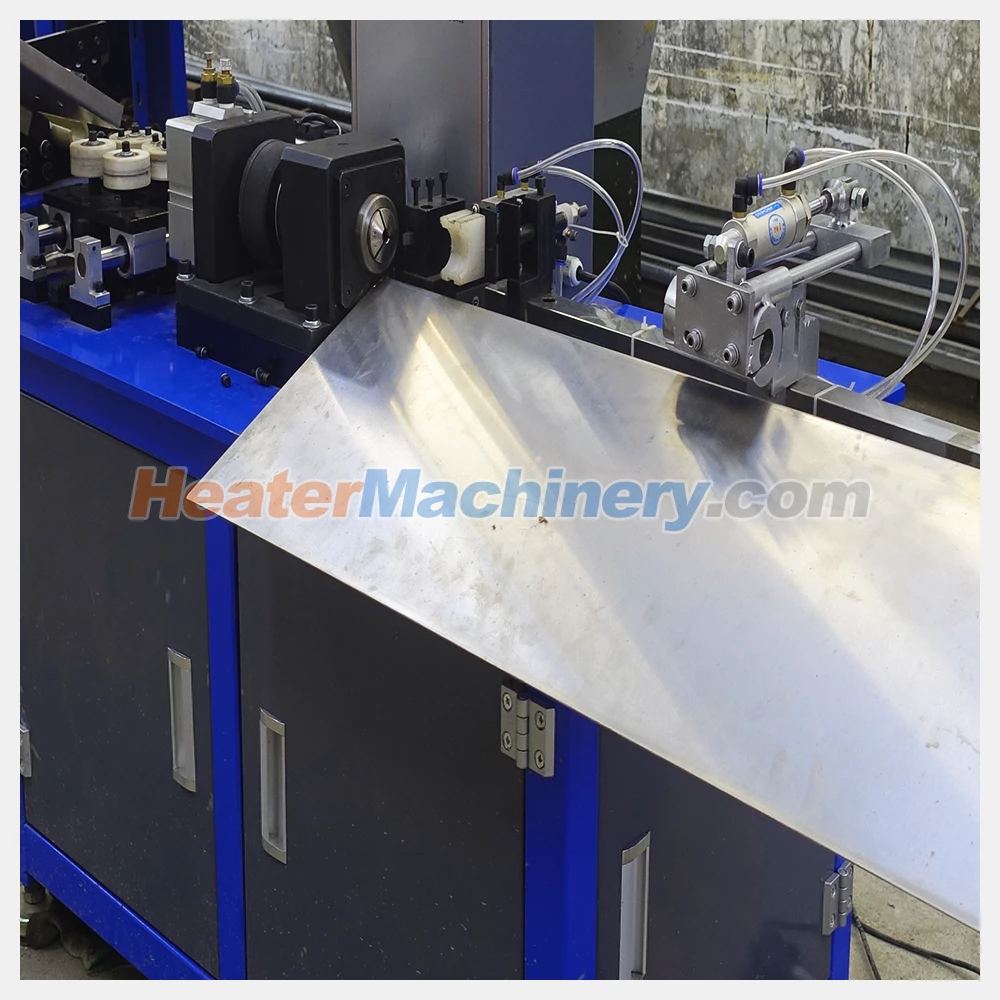

Automatic Feeding Tubes Cutting Machine

HM-CM101A Automatic Feeding Tubes Cutting Machine Cutter

How to use HM-CM101A Automatic Feeding Tubes Cutting Machine

Specifications

Additional information

Model	HM-CM101A
Min Length	50mm
Max Length	6000mm
Min Diameter	5mm
Max Diameter	15mm

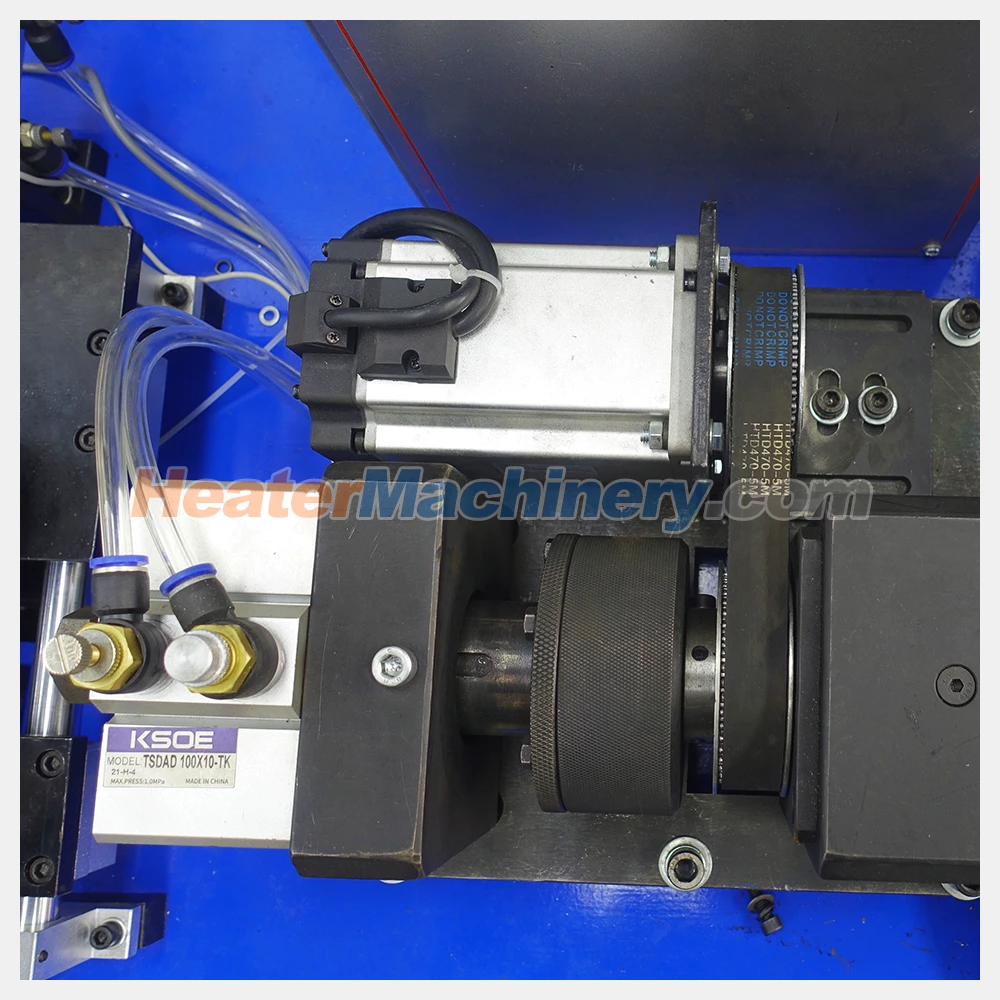

Motor	Servo Motor
Productivity (8 hours)	20000

Description

The HM-CM101A Automatic Feeding Tubes Cutting Machine is designed for fixed-length cutting of tubes used in electric heating elements. It features manual loading, automatic feeding, and automatic cutting, ensuring high precision and efficiency. Controlled by PLC with a user-friendly HMI interface, this machine allows one operator to manage multiple units, significantly boosting productivity and reducing costs.

Features:

PLC Control & HMI Operation – Ensures accuracy and ease of use.
Automatic Feeding & Cutting – Reduces manual labor and increases efficiency.
Multi-Material Compatibility – Suitable for copper, iron, stainless steel, and aluminum tubes.
High Productivity – One worker can operate multiple machines simultaneously.

Applications:

Fixed-length cutting of heating element tubes for electric heaters and industrial applications.

– These specifications are based on the “standard specifications” or “with certain optional equipment.”
– The above specifications are subject to change without notice for quality improvement, and the video, illustrations and photos on this page may differ slightly from the actual product in terms of color.
